Location: Home/Mounting Systems/AIR32250AB

Roll on image to zoom in

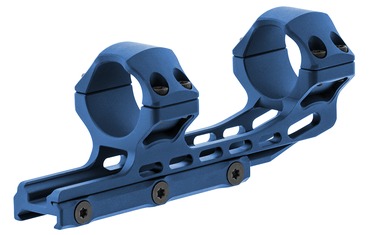

UTG® Accu-Sync® 30mm Picatinny Cantilever Mount, 50mm Offset, High Profile, Blue

Item No.:AIR32250AB
Brand:UTG®
Detail Information:
   USER MANUAL

UTG® ACCU-SYNC® 30 mm Picatinny Cantilever Mount, 50 mm Offset, High Profile, Blue

  • UTG Accu-Sync 30 mm High Profile 50 mm Offset Scope Ring Mount for a Precise Fit on MIL-STD-1913 Picatinny Rails
  • Precision CNC Machined from Aircraft Grade Aluminum and Finished in a Blue Anodize
  • Significant Lightening Cuts to Massively Reduce Weight Without Compromising Durability
  • Radiused Edges and Corners to Prevent Snagging, Scratching, or Tearing of Other Gear and for Effortless Access to Scope Windage and Elevation Turrets
  • Single Mount Utilizes Locking Torx Screws and Square-shaped Integral Recoil Stops For a Secure Zero Hold
  • 22 mm Saddle Height, 50 mm Offset Distance, 100 mm Base Length, High Profile Fits 30 mm Tube Optics with up to a 73 mm Outer Objective Diameter
  • Includes a T20 Torx Wrench for Simple and User Friendly Installation
  • NOTE: We recommend to tighten the ring top screws with a torque value of about 25 in-lbs and the side plate screw with torque value of about 35 in-lbs.

Specifications

AttachmentPicatinny
Color(s)Blue
Height ProfileHigh
Locking MechanismTorx Screw
Material Surface FinishAnodized
Materials6061-T6 Aluminum
Required Picatinny Space11 slots
Torque Specification25 in-lbs (T20, Top Screws) | 35 in-lbs (T20, Side Plate)
Weight5.6 oz (170 g)

Dimensions

Base Length3.94 in (100 mm)
Center Height1.46 in (37 mm)
Inner Diameter30 mm
Length5.9 in (150 mm)
Max Fit Obj. Bell Diameter2.87 in (73 mm)
Offset Distance1.97 in (50 mm)
Ring Distance (Inner)2.36 in (60 mm)
Ring Distance (Outer)4.33 in (110 mm)
Ring Width.98 in (25 mm)
Saddle Height.87 in (22 mm)
Width1.84 in (46.7 mm)
