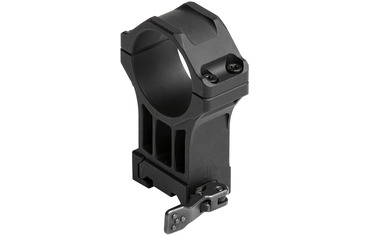

UTG® Accu-Sync® 34mm QR Picatinny Scope Rings, 2X-High Profile

Item No.:	AQR432
Brand:	UTG^®

Detail Information:

USER MANUAL

UTG® ACCU-SYNC® 34 mm QR Picatinny Scope Rings, 2X-High Profile

Precision CNC Machined from 6061-T6 Aluminum and Finished in a Matte Black Anodization
Significant Lightening Cuts Massively Reduce Weight Without Compromising Durability
Radiused Edges and Corners to Prevent Snagging, Scratching, or Tearing of Other Gear and for Effortless Access to Scope Windage and Elevation Turrets
Quick Release (QR) Mount Features Tool-free Tension Adjustment, QD Locking Quick Release Levers, and Squared Recoil Stops for a Secure Zero Hold and Return to Zero
32 mm Saddle Height, 49mm Center Height, Fits 34 mm Tube Optics with an Objective Outer Diameter up to 98mm
NOTE: We recommend to tighten the ring top screws with a torque value of 25 in-lbs.

Specifications

Attachment	Picatinny
Caliber Rating	.338 Lapua Magnum
Color(s)	Black
Height Profile	2X-High
Locking Mechanism	QD Lever Lock
Material Surface Finish	Anodized
Materials	6061-T6 Aluminum
Quick-detachable	Yes
Required Picatinny Space	3 slots - each
Torque Specification	25 in-lbs (T20, Top Screws)
Weight	2.8 oz (79 g) - each

Dimensions

Center Height	1.93 in (49 mm)
Inner Diameter	34 mm
Max Fit Obj. Bell Diameter	3.81 in (97 mm)
Ring Width	.87 in (22 mm)
Saddle Height	1.26 in (32 mm)
Width	2 in (50.8 mm)

Warranty

Mounts Warranty:

Limited lifetime warranty for Leapers Mounting Systems that are purchased new, not damaged or disassembled.

Click Customer Service, e-mail office@leapers.com, or call (734)542-1500 to request warranty service and obtain Leapers Return Authorization Number(RA#) before returning the product. Provide the following information when contacting us:

product model, serial number, invoice showing seller and date of purchase, reason for return, shipping address (no P.O. Box).

Send the product in its original packaging and the above information with RA# to Leapers. A minimal processing fee will be required. The warranty request will be processed within 1 week upon receipt.
