Detail Information:

USER MANUAL

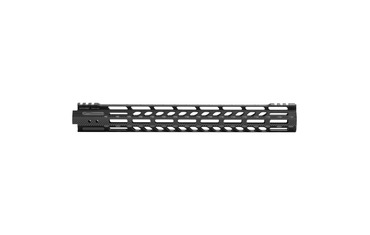

UTG PRO® M-LOK® AR15 15" Ultra Slim Free Float Handguard

The UTG PRO® Ultra Slim handguard, with its new minimalist look and feel, features weight reduction lightening cuts and a reduced top Picatinny rail with 3 slots at the front and rear. The Ultra Slim is equipped with M-LOK® slots at the 3, 6, and 9 O'clock positions. A uniquely knurled surface on the left and right side of the handguard provides an aesthetically pleasing new look while providing addition grip traction for the user.

Proudly Designed and Made in USA
15" M-LOK® Ultra Slim Free Float Handguard with Proprietary Steel Barrel Nut Included
Features 8 M-LOK® Slots on 3 Slot Tracks at the 3, 6 and 9 o'clock Positions for Mounting M-LOK® Rails and Direct Accessories
Compatible with Left or Right Handed Standard Mil-spec AR15 Upper Receivers
Ultra Slim Design with Lightening Cuts Made Throughout the Handguard to Massively Reduce Weight, While Still Allowing for a High Level of Modularity
Includes 2 M-LOK® Accessories, an 8-Slot Picatinny Rail Section and a QD Sling Swivel Adaptor, Ready to Use Right Out of the Box
Integral Anti-rotation Tabs and a Steel Barrel Nut Provide a Secure and Seamless Installation with the Upper Receiver While Completely Preventing the Handguard From Rotating Under Heavy Use
Ergonomically Grooved Handguard Surface and Overall Octagonal Profile Features Additional Left and Right Sided Grip Serrations
3-Slot Top Picatinny Rail Found at the Forward and Rearward of the Handguard
Precision Machined from 6061-T6 Aircraft Grade Aluminum with a Matte Black Hard Coat Anodize
Barrel Nut Wrench, Hardware, and Installation Instructions Included for Quick Out of the Box Installation
Designed to Fit with Standard Gas Tube and Barrel Diameter Not Exceeding 1" Not Compatible with Piston System, Re-designed or Over-sized Upper Receivers
Counts as one 922(r) compliant part

Specifications

922R Compliant	Yes
Color(s)	Black
Compatible with	AR15
M-LOK Slots	32 total (8 on the left, right, and bottom surfaces, plus 1 front and 1 rear on all 45° faces.)
Material Surface Finish	Anodized
Materials	6061-T6 Aluminum
Modular System	M-LOK®
Patent	US PAT. 8806792
Picatinny Slots	6 Top (3 at front, 3 at rear)
Suppressor Dedicated	No
Torque Specification	35-60 ft-lbs (barrel nut) \| 25 in-lbs (T20 Torx)
Weight	11.5 oz (326 g)

Dimensions

Gas Tube Channel Height	1.04 in (26.5 mm) from center of bore
Gas Tube Channel Width	.44 in (11.2 mm)
Height	1.98 in (50 mm)
Inner Diameter	1.33 in (33.8 mm)
Installed Length	15 in (381 mm)
Length	15.33 in (389.4 mm)
Width	1.53 in (39 mm)
