Location: Home/Made in USA/Mounting Systems/RWU013415

Roll on image to zoom in


Parts

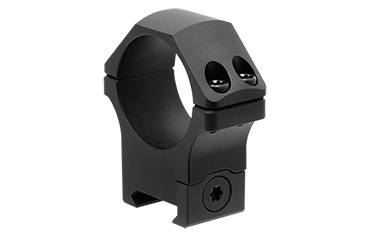

UTG PRO® 34mmǘPCs Medium Profile P.O.I® Picatinny Rings

Item No.:	RWU013415
Brand:	UTG PRO
Patent:	ECD Reg. # 002761064-0001,US PAT. D771218

Unique Features

Detail Information:

• Proudly Designed and Made in USA
• Medium Profile P.O.I® (Precision Optics Interface) Rings Have a 32mm Center Height to Fit Optics with a 34mm Tube, and up to a 63mm Outer Objective
• The Innovative P.O.I® (Precision Optics Interface) Addresses 3 of the Most Critical Areas in Scope Rings -
a) Progressively Machined for a Precise Inner Ring Surface to Achieve a Seamless Ring-to-Scope Interaction
b) Low Profile and Flush-fitting Locking Side Plate Controlled by Dual Spring Loaded Guide Rods Interfacing with the Rail with Torx Screw Locking to Ensure Secure and Repeatable Zero Hold
c) Square-shaped Integral Recoil Stop Interfacing with a Picatinny Slot via Complete Surface Contact to Eliminate the Possibility of Forward and Aft Movement from Recoil Vibrations
• 2 Piece Ring Set, Each Equipped with 4 Top Torx Screws Designed with a 22mm Ring Width
• Designed to Fit on Mil-spec 1913 Picatinny Rail Platforms
• Machined from 6061-T6 Aluminum Alloy and 4605 Steel with Matte Black Hard Coat Anodize
• UTG PRO® Original Snag-free Contoured Profile with Reduced Weight and Size

</font></b>

NOTE: </font>We recommend to tighten the ring top screws with a torque value of about 25 inch-lb and the side plate screw with torque value of about 45 inch-lb.

UTG PRO® 34mmǘPCs High Profile P.O.I® Picatinny Rings
RWU013420

Material:	Aluminum/Steel
Pieces:	2
Rail Type:	Picatinny
Profile Level:	Medium
Ring Diameter:	34 mm
Ring Width:	22 mm

Mounts Warranty:

Limited lifetime warranty for Leapers Mounting Systems that are purchased new, not damaged or disassembled.

Click Customer Service, e-mail office@leapers.com, or call (734)542-1500 to request warranty service and obtain Leapers Return Authorization Number(RA#) before returning the product. Provide the following information when contacting us:

product model, serial number, invoice showing seller and date of purchase, reason for return, shipping address (no P.O. Box).

Send the product in its original packaging and the above information with RA# to Leapers. A minimal processing fee will be required. The warranty request will be processed within 1 week upon receipt.

Made in USA

Proudly made in USA with superb design and production.

922R Compliant

No person shall assemble a semiautomatic rifle or any shotgun using more than 10 of the imported parts if the assembled firearm is prohibited from importation under US Code 18 section 925(d)(3).
