In the past few years, Range Estimating reticle has begun to be recognized as a very useful tool by hunters and shooters around the world. With some patient learning and practices, this tool can enhance shooting accuracy and performance in ways not imagined before. Staying ahead of the trend, Leapers offers the most unique Range Estimating reticle, TRE, to our customers and continue to develop more for the future.

9 dots:

Regular mil-dot reticle found on the market usually has 4 dots on each direction of the cross hair, giving you 9 different aiming points for either windage or elevation. If you count the 2 inner tips of the opposite duplex cross hairs, you get 11 aiming points. Leapers’s own 36 Mil-Dot Reticle (TRE) has 9 dots on each direction of the cross hair, giving you 19 aiming points or 21 including the inner tips of the duplex cross hairs.

4 dots:

This is the regular mil-dot reticle with 4 dots on each direction of the cross hair, giving you 9 different aiming points for either windage or elevation. If you count the 2 inner tips of the opposite duplex cross hairs, you get 11 aiming points.

Mil-Dot Range Estimating:

Range estimating requires common knowledge/experience about your target's actual width or height.
Set your scope at 10X or the proper power, depending on the scope. View the target through the scope. Place the center of the dot against one edge of the target and measure to the opposite edge of the target.

Once the target has been measured in mils, depending on the scope model, a formula is available to estimate the distance of the target.
Each scope will come with a pre-calculated mil-dot table of most used distance estimates to aid the user.

Mil-Dot Range Estimating Example:

Height or Width of Target in Meters x 1,000		Magnification
	x		= Range in Meters (1 M = 1.0936 Yards)
Height or Width of Target in Mils		10

Hence, (1.016 x 1,000/9) X (9/10 ) = 101.6 meters (110 yds). Armed with this knowledge, you can compensate for the bullet’s drop accordingly and make “great things happen”!

Optics Warranty:

Lifetime warranty* for AccuShot Series, UTG Series, 5th Gen Series and Golden Image Series scopes.
(*2 year warranty for Dot Scopes/Sights.)

Warranty against material or workmanship defects applies based on the following conditions -

Scope was purchased new. Evidence of purchase is required for warranty service.

Scope was not disassembled, parts/screws not removed or loosened, and the scope was not tampered with in any way. Any evidence of such interference will void the warranty.

Scope has not been abused, maliciously damaged or treated in a manner not in keeping with the purpose it was designed for.

Click Customer Service, e-mail office@leapers.com, or call (734)542-1500 to request warranty service and obtain Leapers Return Authorization Number(RA#) before returning the product. Provide the following information when contacting us:

scope model, serial number, invoice showing seller and date of purchase, reason for return, shipping address (no P.O. Box).

Send the product in its original packaging and the above information with RA# to Leapers. A warranty processing fee will be required. The warranty request will be processed within 1 week upon receipt.

Name:

Ritchard Markelz

Occupation:

Sr. Director - Entertainment Software

Address:

Temecula, CA

Date:

March, 2010

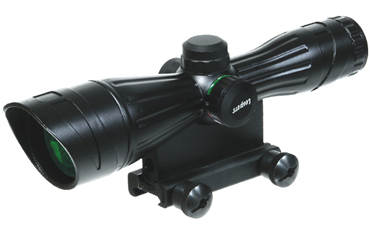

“Excellent Product I placed a SCP-T169 on my Colt M4 22lr and it was amazing - right out of the box, needed some sighting. Put 350 rnds through on the first day and still hitt metal targets at 25yds. Keep up the great work, it is hard to find this kind of quality at such an affordable price. I would be willing to test any of your scopes on my STG58C .308 :).“

Name:

Joseph Golden

Occupation:

Radio Technician

Address:

Pomona, CA

Date:

October, 2009

“I purchased the scp-t-169 model for my stag arms 6.8mm spc ar-15 carbine rifle. It works great. I shoot standing , bench and prone w/ bipod (the main one I prefer)to 100 yards as well as hunt out to 100 yards prone position. A couple of weeks ago I went hunting wild boar to see what the scope can really do. I shot a 160 pound boar In the the prone shooting position w/bipod. Took him down at 80 yards (using a rangefinder) one shot in the chest cavity. The optics are very clear. I used hornady 110 gr. v-max ammo by the way. Good scope all around for the price. I posted a pic shooting at the range after the scope was dailed in.”

SWAT Illumination

Side wheel adjustable turret opposite to the windage adjustment turret, controls different levels of red or green illumination in reticle, or turns off to return to black reticle, accommodates diverse weather/light conditions.

True Hunter Turrets

Brass based windage/elevation adjustment turrets with screw-on cap.

Fixed Power

Magnification of the scope is fixed.
