UTG 2-16X44 30mm Multi-range AO Scope, 36-color UMOA Reticle
SCP3-216UMOA

UTG 4-16X44 30mm Compact Scope, AO, 36-color Glass Mil-dot
SCP3-UGM416AOIEW

UTG 3-12X44 30mm Compact Scope, AO, 36-color Mil-dot, Rings
SCP3-UM312AOIEW

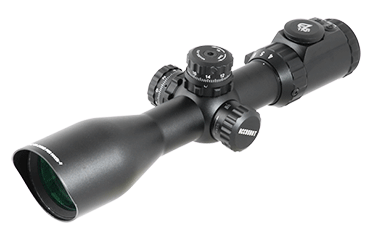

UTG 4-16X44 30mm Scope, AO, 36-color Mil-dot, w/ Rings
SCP3-U416AOIEW

UTG 2-7X44 30mm Long Eye Relief Scout Scope, AO, 36-color
SCP3-274LAOIEW

UTG Add-on Index Wheel for Side Wheel AO Scope, 60mm
SCP-SW060B

UTG Add-on Index Wheel for Side Wheel AO Scope, 80mm
SCP-SW080B

Magnification:	4X - 16X
Tube Diameter:	30 mm
Objective Diameter:	44mm
Field of View @ 100 yards:	26.2'
Eye Relief:	3.4" - 3"
Exit Pupil:	11mm
Click Value @100 yards:	1/4"
Length:	284mmmm
Height:	66mmmm
Weight:	21.8oz oz
Parallax Setting:	10Yds - Infinity
Batteries:	CR2032 3V

In the past few years, Range Estimating reticle has begun to be recognized as a very useful tool by hunters and shooters around the world. With some patient learning and practices, this tool can enhance shooting accuracy and performance in ways not imagined before. Staying ahead of the trend, Leapers offers the most unique Range Estimating reticle, TRE, to our customers and continue to develop more for the future.

9 dots:

Regular mil-dot reticle found on the market usually has 4 dots on each direction of the cross hair, giving you 9 different aiming points for either windage or elevation. If you count the 2 inner tips of the opposite duplex cross hairs, you get 11 aiming points. Leapers�s own 36 Mil-Dot Reticle (TRE) has 9 dots on each direction of the cross hair, giving you 19 aiming points or 21 including the inner tips of the duplex cross hairs.

4 dots:

This is the regular mil-dot reticle with 4 dots on each direction of the cross hair, giving you 9 different aiming points for either windage or elevation. If you count the 2 inner tips of the opposite duplex cross hairs, you get 11 aiming points.

Mil-Dot Range Estimating:

Range estimating requires common knowledge/experience about your target's actual width or height.
Set your scope at 10X or the proper power, depending on the scope. View the target through the scope. Place the center of the dot against one edge of the target and measure to the opposite edge of the target.

Once the target has been measured in mils, depending on the scope model, a formula is available to estimate the distance of the target.
Each scope will come with a pre-calculated mil-dot table of most used distance estimates to aid the user.

Mil-Dot Range Estimating Example:

Height or Width of Target in Meters x 1,000		Magnification
	x		= Range in Meters (1 M = 1.0936 Yards)
Height or Width of Target in Mils		10

Hence, (1.016 x 1,000/9) X (9/10 ) = 101.6 meters (110 yds). Armed with this knowledge, you can compensate for the bullet’s drop accordingly and make “great things happen”!

Optics Warranty:

Lifetime warranty* for AccuShot Series, UTG Series, 5th Gen Series and Golden Image Series scopes.
(*2 year warranty for Dot Scopes/Sights.)

Warranty against material or workmanship defects applies based on the following conditions -

Scope was purchased new. Evidence of purchase is required for warranty service.

Scope was not disassembled, parts/screws not removed or loosened, and the scope was not tampered with in any way. Any evidence of such interference will void the warranty.

Scope has not been abused, maliciously damaged or treated in a manner not in keeping with the purpose it was designed for.

Click Customer Service, e-mail office@leapers.com, or call (734)542-1500 to request warranty service and obtain Leapers Return Authorization Number(RA#) before returning the product. Provide the following information when contacting us:

scope model, serial number, invoice showing seller and date of purchase, reason for return, shipping address (no P.O. Box).

Send the product in its original packaging and the above information with RA# to Leapers. A warranty processing fee will be required. The warranty request will be processed within 1 week upon receipt.

EZ-TAP IE Illumination U.S.Pat. 8,437,079 EU Patent Pending

Most user friendly low profile illumination system on the ocular tube for red, green or black reticle, soft and ergonomically designed rubber pads for user to easily tap to the desired level of brightness, Push both buttons to and hold to enter full color reticle mode. Full color reticle mode consists of 36 different color options for optimal visibility in all environments. High-tech memory feature to return to last color/brightness used, accommodates diverse weather/light conditions.

Ring-lock Target Turrets

Windage/elevation target turrets with locking ring to lock zero and zero-resetting function to align marking after zeroing your scope.

SWAT AO

Side wheel adjustable turret opposite to the windage adjustment turret, adjusts parallax from close range to infinity.

Variable Power

Magnification of the scope is adjustable.
