Location: Home/Optics/Brand/SCP3-UG832G4

Roll on image to zoom in
PartsManual

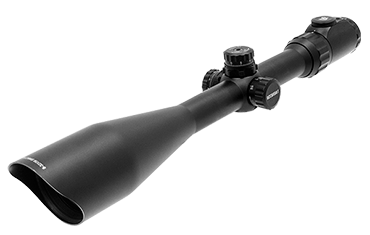

UTG 8-32X56 30mm Scope, AO, 36-color IE®, G4 Dot Reticle

Item No.:SCP3-UG832G4
Brand:ACCUSHOT®
Patent:EU PAT. EP2520894,US PAT. 8437079
Detail Information:
   • Etched Glass German #4 Dot Reticle with Built-in TACTEDGE® Angled Integral Sunshade Reduces Indirect Glare Coming Into the Lens Mitigating Lens Flare
• 30mm Tube with Best in Class Emerald Lens Coatings to Achieve Maximum Light Transmission for Best Clarity
• Built on True Strength Platform, Completely Sealed and Nitrogen Filled, Shockproof, Fogproof and Rainproof
• Innovative EZ-TAP® Illumination Enhancing (IE®) System with Red/Green Dual-Color Mode and 36 Multi-Color Mode to Accommodate All Weather/Light Conditions (U.S. Pat. 8,437,079; EU Patent Pending)
• 1-Click Illumination Memory Feature Gets the User Right Back to the Color/Brightness Setting Last Used
• Premium Zero Lockable and Zero Resettable Target Turrets with Most Consistent and Precise 1Ǟ MOA per Click Adjustment
• Parallax Setting from 10 Yards to Infinity
• Complete with UTG Max Strength Twist Lock Picatinny/Weaver Rings and High Quality Flip-open Lens Caps

UTG 4-16X56 30mm Scope, AO, 36-color IE®, G4 Dot Reticle
SCP3-UG4165G4

UTG Compact Prismatic 4X32 T4 Scope, 36-Color, T-DOT
SCP-T4IETDQ

UTG Prismatic 4X32 T4 Scope, 36-Color, Mil-Dot
SCP-T4IEMDQ

UTG Compact Prismatic 4X32 T4 Scope, 36-Color, Circle Dot
SCP-T4IECDQ

UTG 8-32X56 30mm Scope, AO, 36-color Glass Mil-dot, w/ Rings
SCP3-UG832AOIEW

UTG 3-12X44 30mm Scope, AO, 36-color Glass Mil-dot, w/ Rings
SCP3-UG312AOIEW

UTG 4-16X44 30mm Compact Scope, AO, 36-color Glass Mil-dot
SCP3-UGM416AOIEW

UTG 4-16X44 30mm Compact Scope, AO, 36-color Mil-dot, Rings
SCP3-UM416AOIEW

UTG 3-12X44 30mm Compact Scope, AO, 36-color Glass Mil-dot
SCP3-UGM312AOIEW

UTG 3-12X44 30mm Scope, AO, 36-color Mil-dot, w/ Rings
SCP3-U312AOIEW

UTG 4-16X44 30mm Scope, AO, 36-color Mil-dot, w/ Rings
SCP3-U416AOIEW

UTG 3-12X44 30mm Compact Scope, AO, 36-color Mil-dot, Rings
SCP3-UM312AOIEW

UTG 1-4.5X28 30mm CQB Scope, 36-color Glass Circle Dot,Rings
SCP3-145IECDQ

UTG 1-4.5X28 30mm CQB Scope, 36-color Glass Mil-dot,QD Rings
SCP3-145IEMDQ

UTG 4-16X56 30mm Scope, AO, 36-color Glass Mil-dot, w/ Rings
SCP3-UG4165AOIEW

UTG 4-16X56 30mm Bubble Leveler Scope, IE® Mil-dot Reticle
SCP3-UG4165AOIEWB

UTG 6-24X56 30mm Scope, AO, 36-color Glass Mil-dot, w/ Rings
SCP3-UG6245AOIEW

UTG 2-16X44 30mm Multi-range AO Scope, 36-color UMOA Reticle
SCP3-216UMOA

UTG Add-on Index Wheel for Side Wheel AO Scope, 60mm
SCP-SW060B

UTG Rubber Scope Eyeshade for 36, 40, 41.5, 43mm Eyepiece
SCP-ES403

UTG Add-on Index Wheel for Side Wheel AO Scope, 100mm
SCP-SW100B

UTG Add-on Index Wheel for Side Wheel AO Scope, 80mm
SCP-SW080B

UTG 2-16X44 30mm Multi-range Scope, AO, 36-colors, QD Rings
SCP3-216AOIEW

Magnification:8X - 32X
Tube Diameter:30 mm
Objective Diameter:56mm
Field of View @ 100 yards:13.1'
Eye Relief:3.4" - 3.3"
Exit Pupil:7mm
Click Value @100 yards:1/8"
Length:445mmmm
Weight:32.2oz oz
Parallax Setting:10Yds - Infinity
Batteries:CR2032 3V


  • Mil-Dot Range Estimating:







  • Mil-Dot Range Estimating Example:


  • For example, based on past experiences, the length of a known animal from shoulder to tail is 40 inches (1.016 meters), and we see through a scope at, for example, 9X to find that the animal occupies 9 mils. Therefore, the distance can be derived from using the following formula -
  Height or Width of Target in Meters x 1,000   Magnification

 x
= Range in Meters (1 M = 1.0936 Yards)
Height or Width of Target in Mils   10

EZ-TAP IE Illumination U.S.Pat. 8,437,079 EU Patent Pending
Most user friendly low profile illumination system on the ocular tube for red, green or black reticle, soft and ergonomically designed rubber pads for user to easily tap to the desired level of brightness, Push both buttons to and hold to enter full color reticle mode. Full color reticle mode consists of 36 different color options for optimal visibility in all environments. High-tech memory feature to return to last color/brightness used, accommodates diverse weather/light conditions.

Ring-lock Target Turrets
Windage/elevation target turrets with locking ring to lock zero and zero-resetting function to align marking after zeroing your scope.

SWAT AO
Side wheel adjustable turret opposite to the windage adjustment turret, adjusts parallax from close range to infinity.

Variable Power
Magnification of the scope is adjustable.
